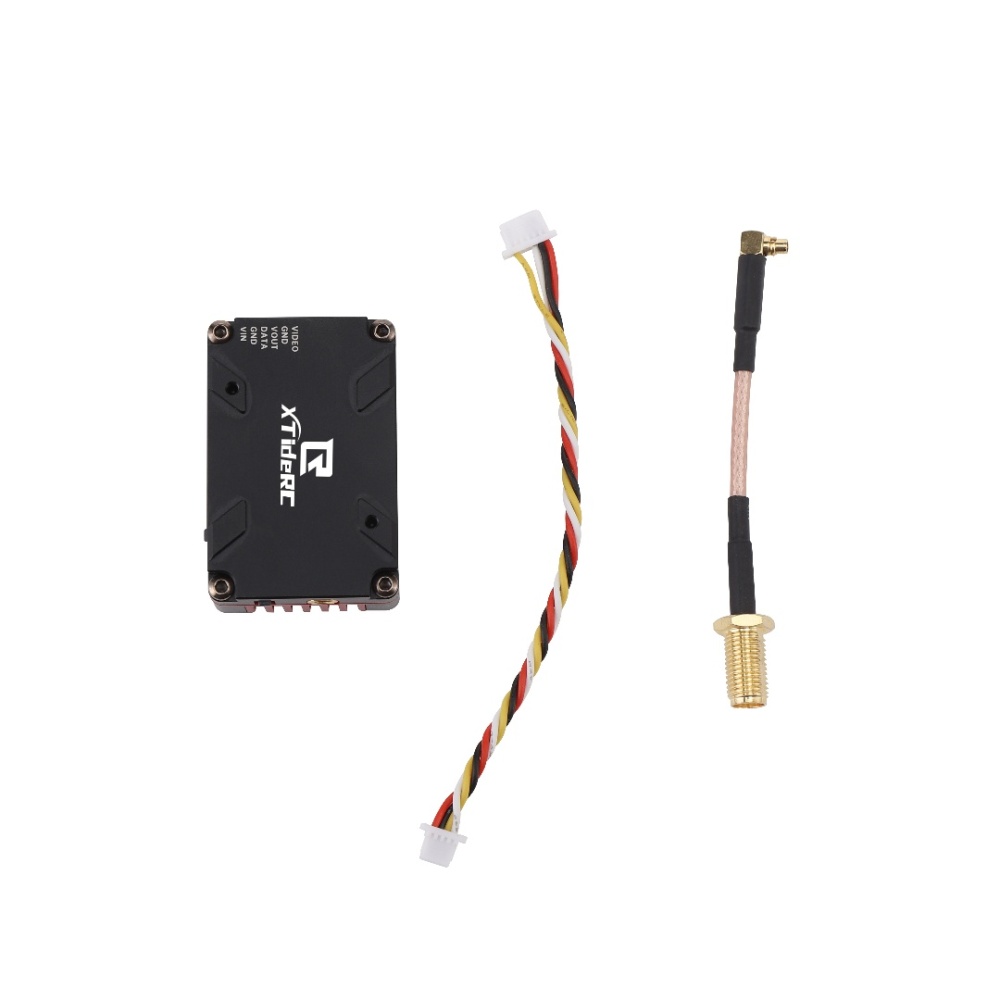

XTideRC,4.8/5.8GHz 3W 64CH VTX, Analog Video/Image RF Transmission Module Kit for FPV UAV Drone

Brand

XTideRC / No brand

Model No.

VTX48G-5D2K-3W-B

Place of Origin

Guangdong, China

Type

FPV Drone accessories

Application

FPV UAV drone air unit, RC model vehicle

Input Power

7V-36V (2S-8S)

Max Operating Current

880mA@12V, 3000mW

RF Frequency

4.9-5.8GHz

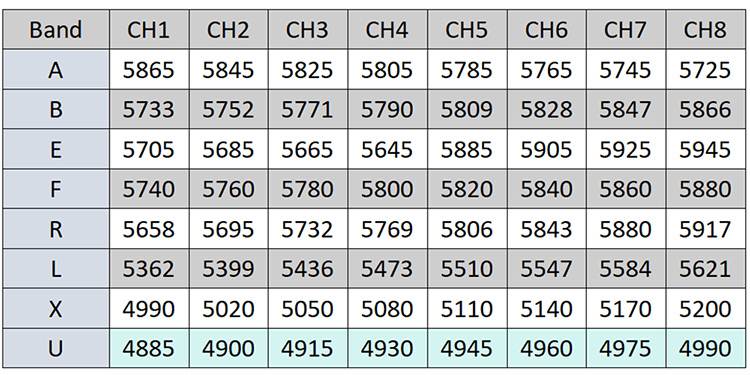

Channels/Bands

64 channels, 7 bands(A-B-E-F-R-L-X-U)

Output Power Levels

5 levels  (25mW /400mW /800mW /1600mW /3000mW). Pit mode supported.

LEDs

3 CH LEDs, 1 band LED, 1 power LED

Keys

1 CH/Band key, 1 power key

Video Format

Analog PAL / NTSC, automatic detection

OSD UART Protocol

IRC Tramp

Antenna Connector Type

MMCX

RF Output Impedance

50 Ohm

UART Connector Type

GH1.25-6P

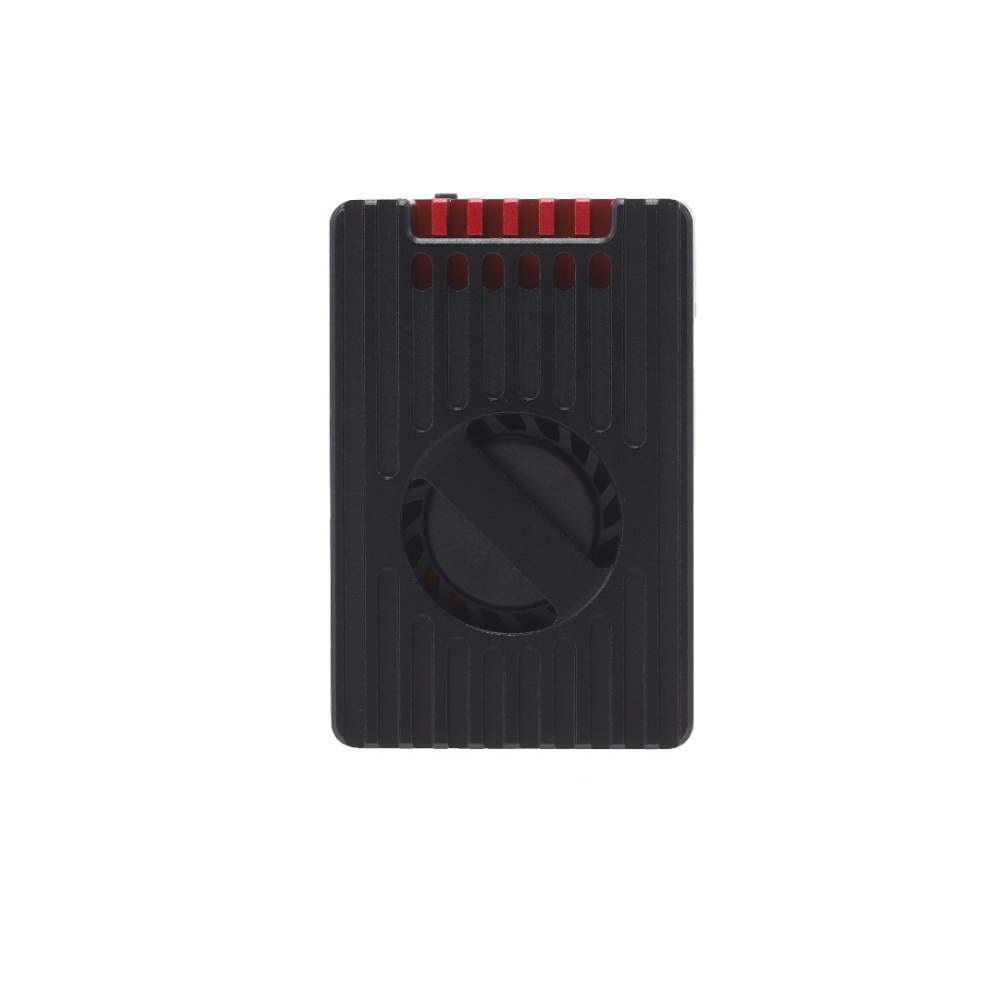

Cooling measures

Aluminum alloy shell + cooling fan

Module Size

35.5*36.5*10 mm

Mounting Hole Pattern

30.5*30.5mm/Φ3

Module Net Weight

12.5g

Item

Sample

OEM

ODM

MOQ

1pcs

500pcs

2000pcs

Lead time

3-7 days

7-12 days

25-30days
