Overview:

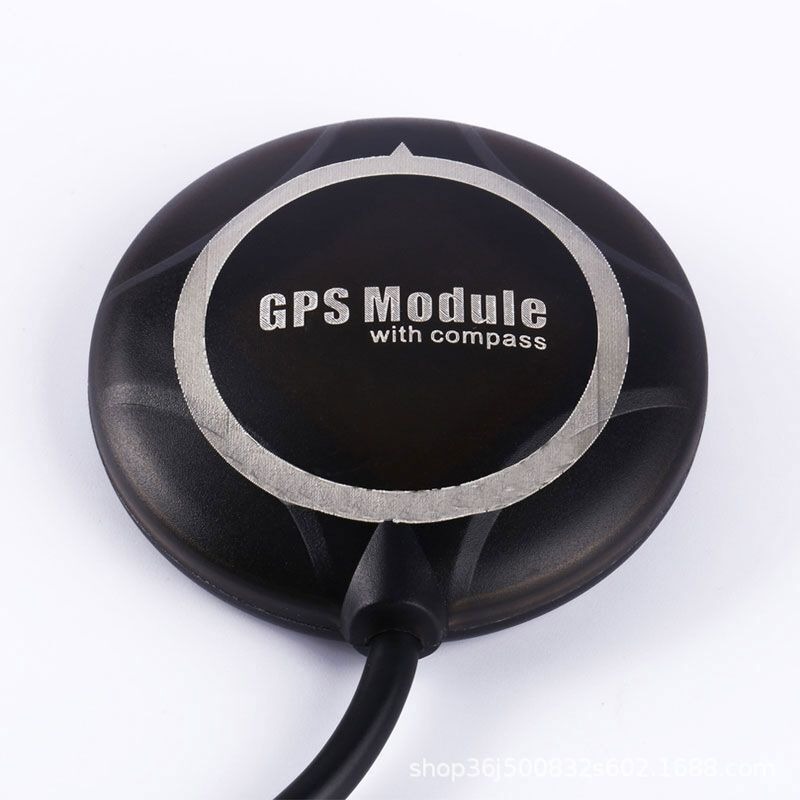

The GPS / GNSS module with magnetic compass adopts a high-precision, high-sensitivity decoding chip solution. It can support GPS,BDS,GALILEO,GLONASS,SBAS,QZSS and is widely used in the precise positioning and navigation of APM/PX4/PIX Flight Controller DIY RC FPV Drones.
Key Attributes:
|
Brand
|
No brand
|
|
Model No.
|
XT-GPS-001
|
|
Place of Origin
|
Guangdong, China
|
|
Type
|
FPV Drone accessories
|
|
Application
|
FPV UAV drone air unit
|
Features:
- Support GPS,BDS,GALILEO,GLONASS,SBAS,QZSS
- Support Magnetic Compass
Specification:
|
GPS Decoder Chip
|
U-BLOX UBX-M8030(M8), 72-channel
|
|
Geomagnetic Chip
|
QMC5883L,which with same technology as HMC5983 form Honeywell
|
|
GNSS System Support
|
GPS L1 /CA; GLONASS L10F; BeiDou B1L/B1C; Galileo E1B/C; QZSS L1 C/A/S; SBAS L1 C/A
|
|
GNSS Concurrent
|
3 (GPS/BeiDou/Galileo(default) or GPS/GLONASS/Galileo), when Beidou B1L is turned off, it becomes possible to use 4 satellite systems at the same time: GPS+BeiDou(B1C)+GLONASS+Galileo
|
|
Antenna
|
2.5dbI high gain and selectivity ceramic antenna
|
|
Double filter
|
SAWF(Surface acoustic wave filter) form Murata
|
|
Max Update Rate
|
10Hz
|
|
Max Satellite Num
|
32
|
|
Positional Accuracy
|
50 centimeter precision when working with concurrent GNSS
|
|
Velocity Precision
|
0.1m/s
|
|
Max Remote Distance
|
50Km
|
|
Max Speed
|
515m/s
|
|
Max Acceleration
|
4G
|
|
Sensitivity
|
Tracking & Nav.：-167dBm Acquisition：-163dBm
Cold start：-151dBm
Hot start：-159dBm
|
|
Activation Period
|
Cold start: 26s
Hot start: 1s
|
|
Power Supply
|
Voltage: 5±5%VDC
Current: 50~55mA
|
|
Power Supply
|
GPS: UART port with baud rate 1.2K /4.8K /9.6K /19.2K /38.4K /57.6K /112.5Kbps
Geomagnetic: I2C port
|
|
Connector
|
SH1.0-6P 1.0mm pitch
|
|
Case Material
|
Plastic
|
|
Dimensions
|
32*30*12mm
|
|
Weight
|
20.82g
|
